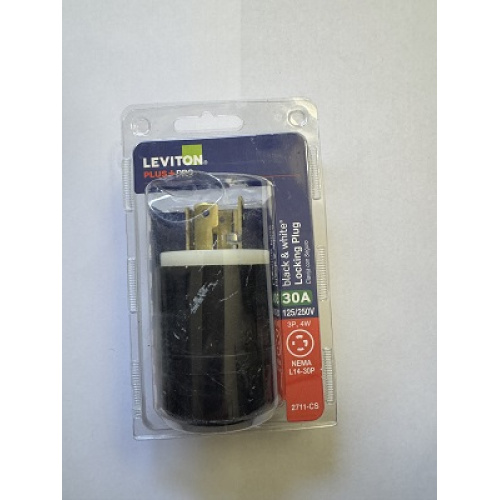

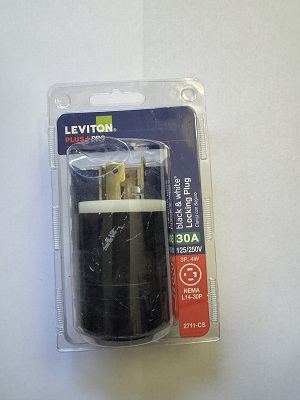

Levitron PLus + Pro 30A 125/250 locking plug
LEVITON Locking Plug: L14-30P, Black/White, 125/250V AC, 30 A, 3 Pole, 4 Blade General purpose plugs provide secure cable-to-plug connections for common industrial and commercial power applications. They are typically used in plant floors, manufacturing facilities, and mills where vibration or equipment movement could disrupt straight-blade connections.
$54.24 Inc Tax
Condition: NEW
Product Details
Brand LEVITON
Part number 000045
Manufacturer Part Number 2711-CS
Bar Code : 0 78477 84289 8
Blade Material Brass
Connection Orientation Straight
Current Rating 30 A
Face Diameter1.97 in
FeaturesIndustry Exclusive Limited Lifetime Warranty
For Environment Dry
For Maximum Cable Diameter1.05 in
For Minimum Cable Diameter0.56 in
GradeFederal Specification
Grounding Grounded
Horsepower Rating 2 hp
Housing Color Black; White
Housing Materia lNylon
IP Rating Not Rated
Maximum Operating Temperature140 °F
Maximum Wire Size 8 AWG
Midget Locking No
Minimum Operating Temperature-40 °C
Minimum Wire Size14 AWG
NEMA ConfigurationL14-30
NEMA Plug ConfigurationL14-30P
Number of Blades 4
Number of Poles3
Phase Single
Power Indicating Light No
Resistance PropertiesImpact Resistant
Shrouded No
StandardsANSI C73; CSA C22.2 No. 42 File LR-406; NEMA WD-6; NOM 057 Certified; UL 498 File E13393; UL Federal Specification WC-596 File E13393
Voltage Rating125/250V AC
Wire Connection Type Screw Terminals
Wiring Style Standard
- Product Description
General purpose plugs provide secure cable-to-plug connections for common industrial and commercial power applications. They are typically used in plant floors, manufacturing facilities, and mills where vibration or equipment movement could disrupt straight-blade connections.
- Availability: 1 In Stock
- Model: 2711-CS
- SKU: 000045
-
